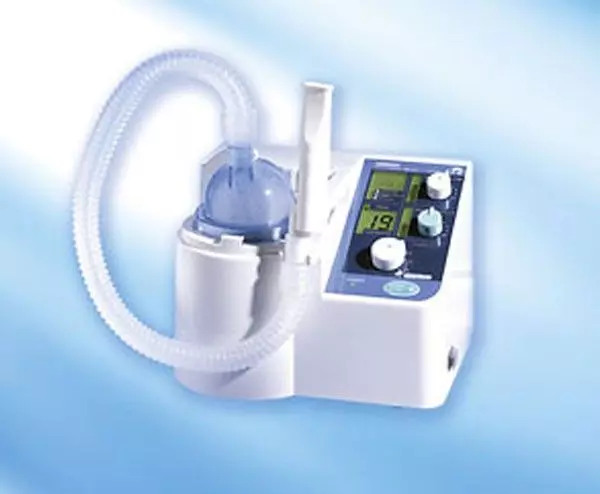

Omron U 17 Nebuliser

Omron U 17 Nebuliser Description

OMRON U 17 has been designed from advanced ultrasonic technology for heavy duty clinical use. Easy to see large LCD displays air volume, nebulisation rate, set time, remaining time, continuous time, and error location. The back-light illumination featured in the unit enables checking of the display in the dark. The unit can nebulise for 72 hours continuously (with the use of the optional longtime nebulisation set and the supply medication set).

The unit has a notification buzzer. The buzzer sounds when an error occurs or the time set by the timer is completed. With the use of a dial, the air volume, nebulisation rate, and time can be set easily and quickly. The unit can handle various inhalation therapies with the use of various optional parts.

About the principle of nebulisation in the Omron U 17

- The NE-U17 transmits the energy of ultrasonic vibration from the vibrator located at the bottom of the water tank into water.
- The ultrasonic vibration is transmitted to the medication in the medication cup through the water in the water tank.
- The ultrasonic vibration emits medication from the medication cup (like a fountain) and this is dispersed as aerosol.
- Air from the fan carries this nebulised medication out of the medication cup.
- Nebulisation: The state in which the medication is converted into aerosol.

Omron U 17 Nebuliser Features:

- High-volume Utrasonic Nebuliser for humidification or medication therapy
- Very quiet
- Large backlit LCD display (“air volume" displayed in 11 levels, “nebulisation rate” displayed in 10 levels, settings and timer)
- Wide medication compliance
- Battery life: up to 72 hours
- Timer – 1-30 minutes
- Audible signal when error occurs or time is over
- Hygienic – simple to disinfect
- Supplied with nebulization kit:
- 1 Carrying bag
- 2 masks (Adult and child)
- 1 inhalation tube
- 1 mouthpiece
- 1 nosepiece
- 2 medication cups

Omron U 17 Nebuliser Technical features:

- Nebulisation rate: 0.4 ml/minute
- Dimensions : 276 x 243 x 226 mm.
- Weight : Approx. 4 Kg.
- Power supply : Mains
